OptiMate Solar Duo 20W

OptiMate SOLAR Duo + 20W Solar Panel

OptiMate Solar - the worlds most efficient Solar Pulse Charger, Tester & Maintainer for both lead acid AND lithium batteries
Charger by day, Monitor by night.

The new OptiMate Solar range features a smart charger-monitor which automatically adjusts the charge according to the battery tyre and condition. Battery status information is provided while charging and when the battery is at rest overnight. The OptiMate Solar TM522-D2 2 amp smart charger controller has a 5 LED panel for comprehensive information on charge progress and battery status.

OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger-monitor to the battery and walk away. No more battery problems.

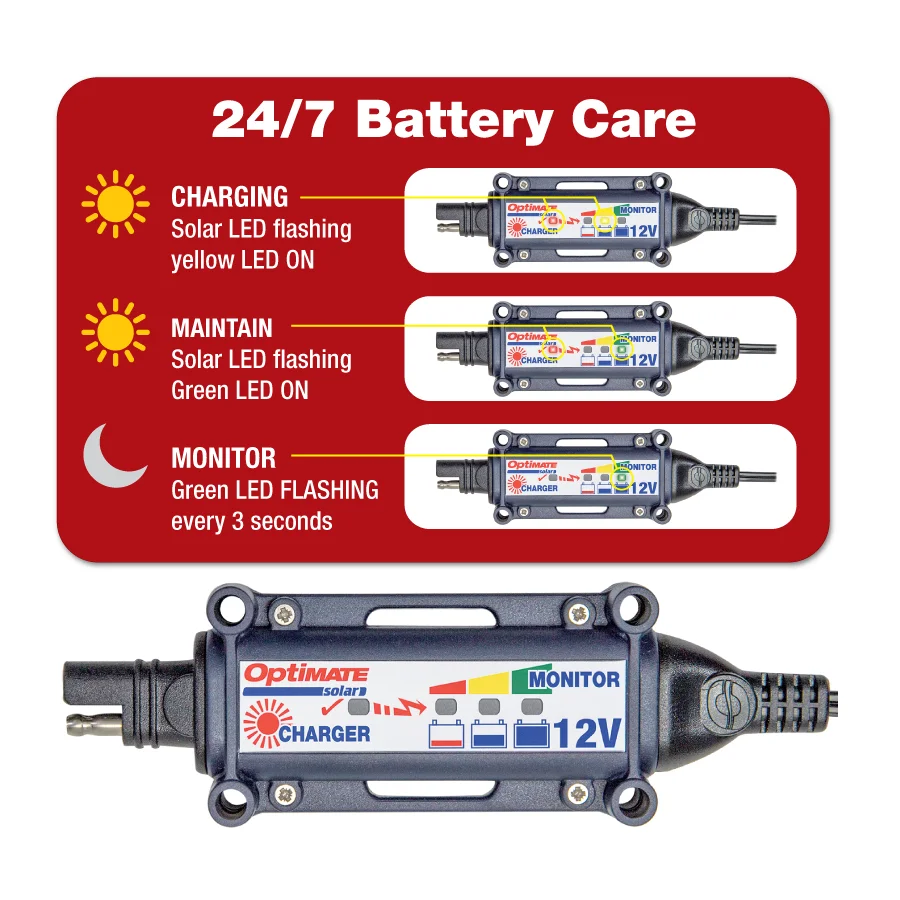

When the panel receives sun, the SOLAR CHARGE LED blinks confirming solar power is being delivered and one of the four battery status LEDs (SAVE, CHARGE, MAINTAIN) indicates charge progress. OptiMate Solar converts low solar energy to a high pulse charge which improves solar charge efficiency. When night falls or if the smart charger-monitor senses no solar power is being delivered it changes into a battery monitor with one of the three charge status lights now indicating battery status every three seconds.

The 20W TM522-D2 kit (12V 1.6A max.) is ideal for all powersports vehicles. The weatherproof solar panel includes corner mounts for easy wall or roof mounting. Each kit includes a high intensity poly crystalline panel with a 2m power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4 battery clamp lead and the outdoor rated OptiMate smart charger-controller (TM522-D2) with a 1m charge cable.

Technical Specifications

Solar Panel:

• POWER: 20 Watts (max)
• VOLTS: 12V / 12.8V
• USE: Outdoor
• STYLE: IP54 Weatherproof, aluminium frame with 4 x mounting brackets, output cable 200cm with SAE connector
• Solar Panel Size: 450 x 360 x 30 mm

OptiMate Charge Controller:

• CHARGING AMPS: 1.67A from 20W panel (max average current)
• USE: Indoor / Outdoor (lowest temperature: -4°F / -20°C)
• SAVE: Low Volt Start of 4V
• IDEAL FOR: STD, AGM & GEL 12V batteries from 5 - 80Ah and Lithium LFP 12.8V / 13.2V batteries
• INPUT: 15 - 22V
• STYLE: IP54 Weatherproof charge controller case

Included accessories: 01 weatherproof permanent lead; 04 battery clamp lead
Warranty: 3 Years
Manufacturer Part Number: TM522-D2

If you would like to secure your Solar Panel using Suction Mounts, you need TA255.
